Shanghai Metal Corporation is an professional manufacturer, export and supplier of Aluminum Foil Container Machine. The offered foil container machine is

designed by using quality proven components and innovative technology under the guidance of adept professionals. Our provided foil container machine is

available in different designs and specifications as per the requirements of our customers.

Automatic Feeder(with lubricating system):
Max. Material Roll Dia.: ￠650mm
Max. Material Roll Width: 650mm
Feeding Speed:10-30M/min
Feeding Length: 30-900mm
Feeding Tolerance: +/-0.3mm
Capacity: 4Kw
Voltage: 380V/220V
Weight:1T
Dimension: 1200x1200x1100mm (L*W*H)
Length Controller:700x720x550mm (L*W*H)

45T press:
Pressure: 550KN
Hole Size of Collecting Table: 300*300mm
Production Output: 40-80times/min
Board Thickness of Collecting Table: 50mm
Max. Height of Mould: 290mm(excluded working plate 50mm)
Slide Board Size: 220*400mm
The Distance from Center of Slide Piece and Punch Unit: 340mm
The adjustment height of Installation of Mould: 60mm
Size of Screw Hole of Mould: 50*60mm
Size of Collecting Table: 660*1000 mm*50 mm
Dimension: 1500*1125*2315mm (L*W*H)
Motor Capacity:7KW
Weight:5000kg

Feature of Aluminum Foil Container Making Machine：

This production line can work automatically. Worker control and regulate this production line through electric control panel.

The feeding system control feeding length and stepping by computer, which assure a high-precision steps.

We can design and manufacture different machines on request. There is some difference in machines outer-appearance.

The press may be equipped with single cavity or multi-cavity moulds for wrinkle-wall or smooth-wall container production.

Main parts and  Electrical components for aluminum container machine:

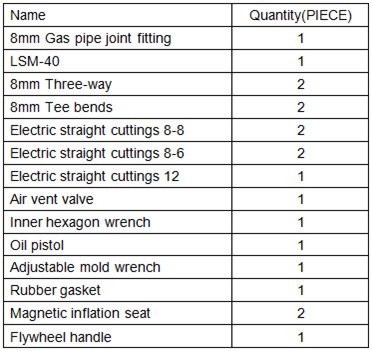

Spare parts list for aluminum container machine:
